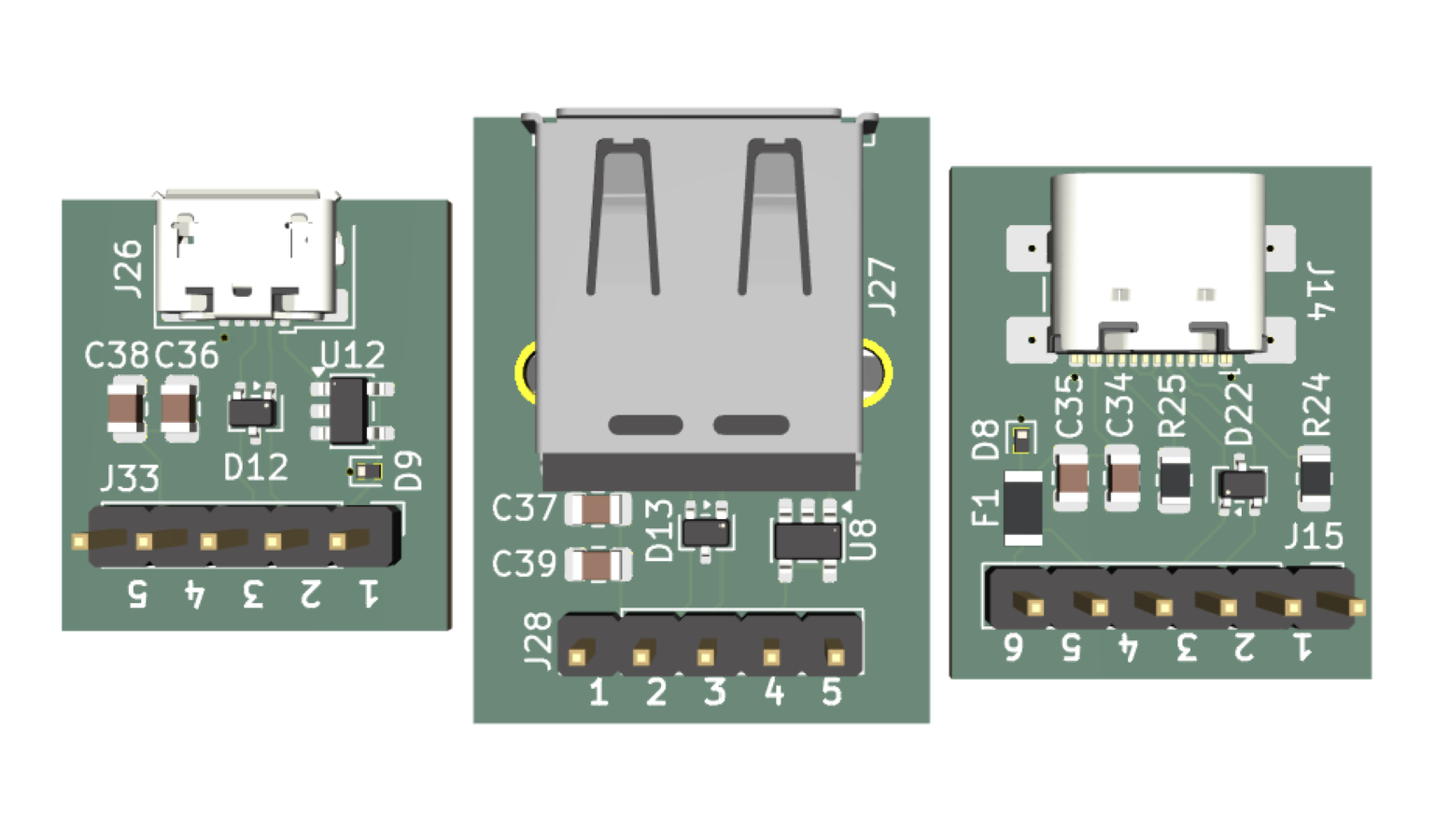

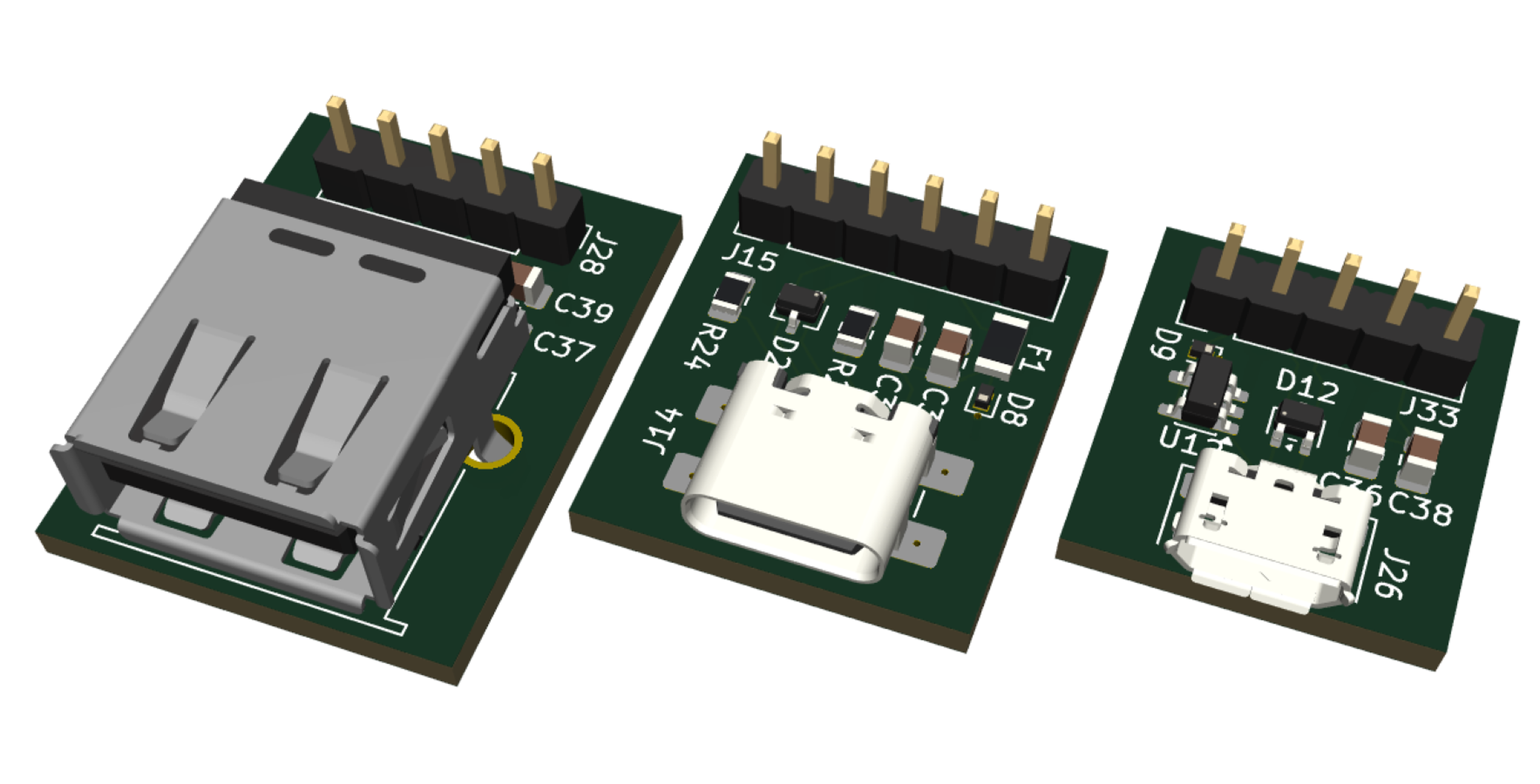

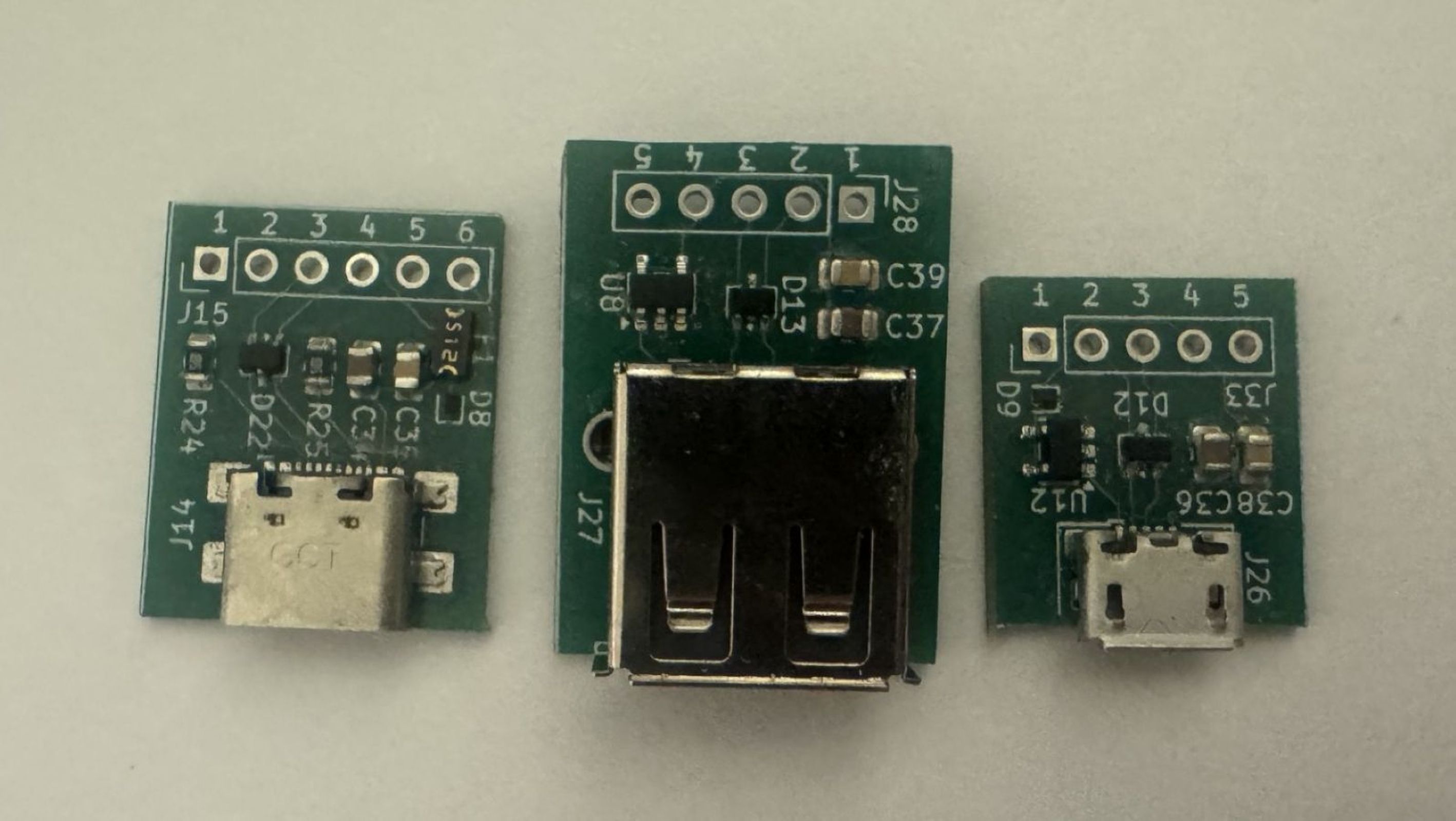

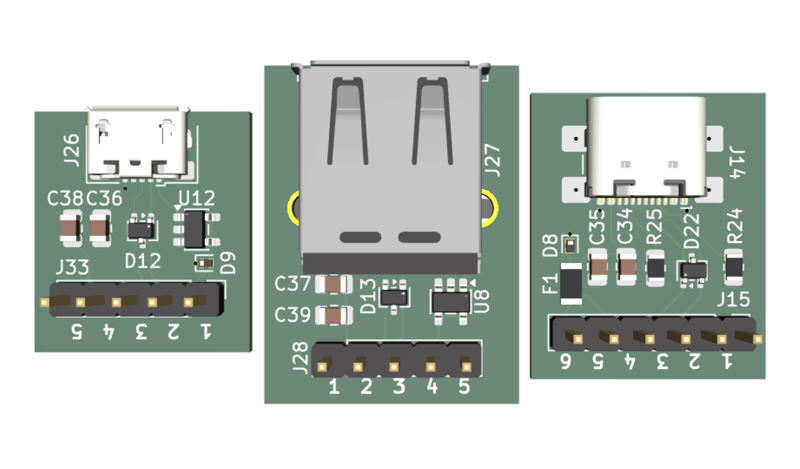

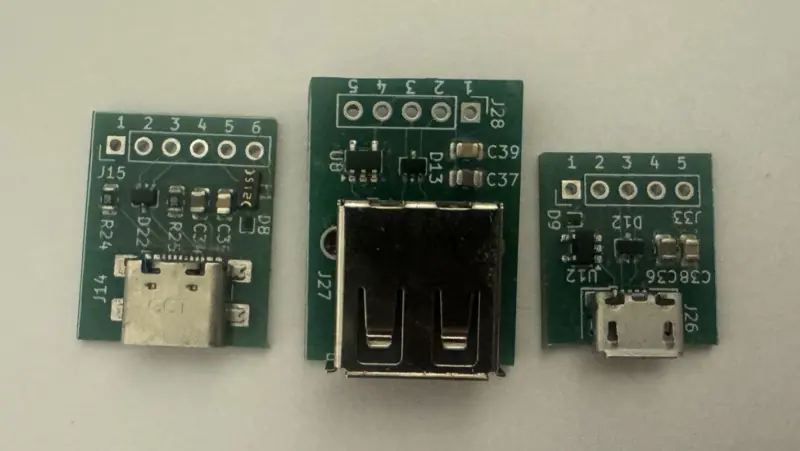

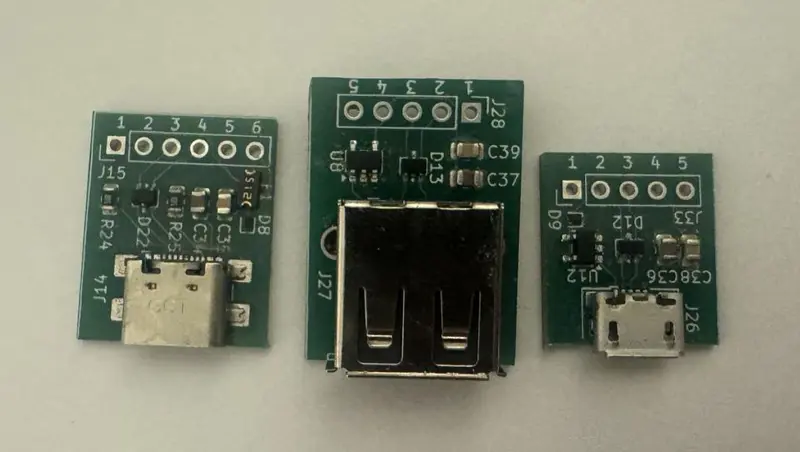

USB Module Kit (Breakout, ESD, Plug + Play)

This USB-C Breakout Module features pin headers for VDD, GND, and the differential data pairs. The module is hard wired with 5.1k CC resistors, configuring it as a 5v sink (This module receives 5v, it's used to power your board). The module features comprehensive ESD & current protections, including diodes on VBUS and data pairs, a polyfuse and a 10uF capacitor.

This USB-A Breakout Module features pin headers for VDD, GND, and the differential data pairs. The module is a USB-A receptacle with +5v VBUS and host-side hardware (this USB module provides power from your board, to the peripheral). The module features an AP2171W power switch for USB VBUS. The module features comprehensive ESD & overcurrent protections, including diodes on data pairs along with decoupling capacitors & the power switch.

This Micro USB-B Breakout Module features pin headers for VDD, GND, and the differential data pairs. The module features an AP2171W power switch for USB VBUS. The module features comprehensive ESD and current protections, including diodes on VBUS and data pairs, along with decoupling capacitors & the power switch. This USB-B is configured as a Host, which means your board provides the USB-B female port with power, to supply external peripherals.

USB-C Datasheet:

https://www.meridianelectronic.com/assets/datasheets/USB-C%20Datasheet.pdf

USB-A Datasheet:

https://www.meridianelectronic.com/assets/datasheets/USB-A%20Datasheet.pdf

USB-B Datasheet:

https://www.meridianelectronic.com/assets/datasheets/USB-B%20Datasheet.pdf
